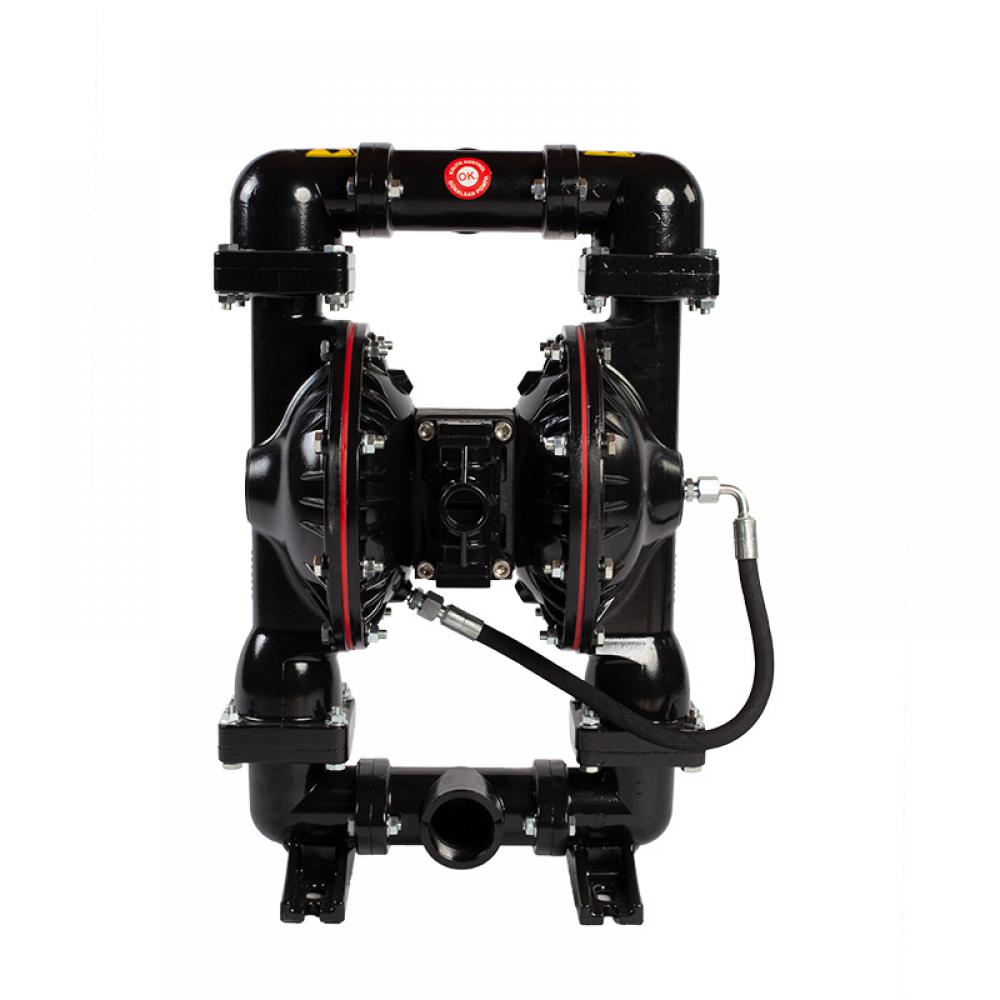

HP200 High Pressure AODD Pumps Technical Data

Max. Capacity                          : 260 lpm

Intake/Discharge Size           : 2" (inch)

Fluid Discharge Pressure    : 14 bar

Main Body                                 : Aluminium, Cast Iron, Cast Stainless Steel

Diaphragms                             : Neoprene, Buna-N

Balls                                         : Neoprene, Buna-N

Ball Seats                                 : Neoprene, Buna-N

Air Inlet Size                             : 3/4" (inch)

Solids - Handling                   : 6mm

Suction Depth                          : 6m

Operating Pressure Max      : 7bar

AREAS OF USAGE:

1-REFINING INDUSTRY: For using as dosage, circulation pump, filter press pump

2-CERAMIC INDUSTRY: Glaze and slurry transfer

3-SHIPPING INDUSTRY : Transferring bilge, sludge and chemicals

4-IN THE MINING SECTOR: Muddy water transfer

ADVANTAGES:

1-Corrosion-resistant

2-Pumps can use for transferring fluids which contains particles

3-Maintenance is easy and costs are low

4-Flow rate can adjust with change inlet air pressure.

5-Pumps can work without fluids.

6-Suction depth is 6 meter.

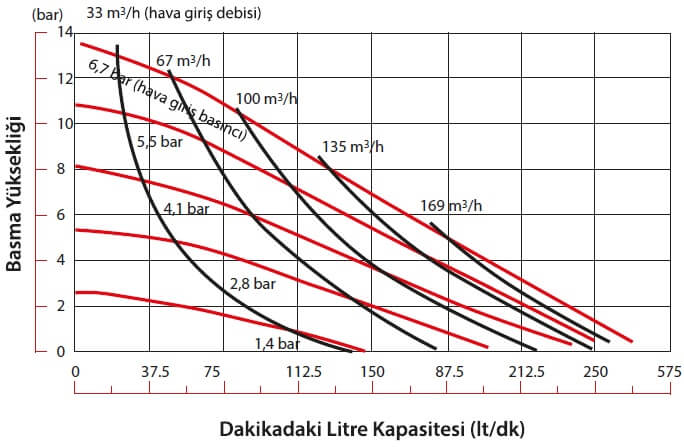

PERFORMANCE CURVE:

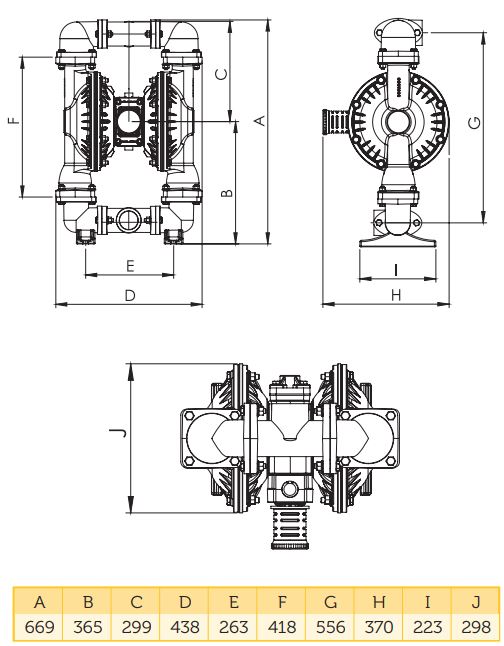

EXTERNAL DIMENSIONS OF THE PUMP:
