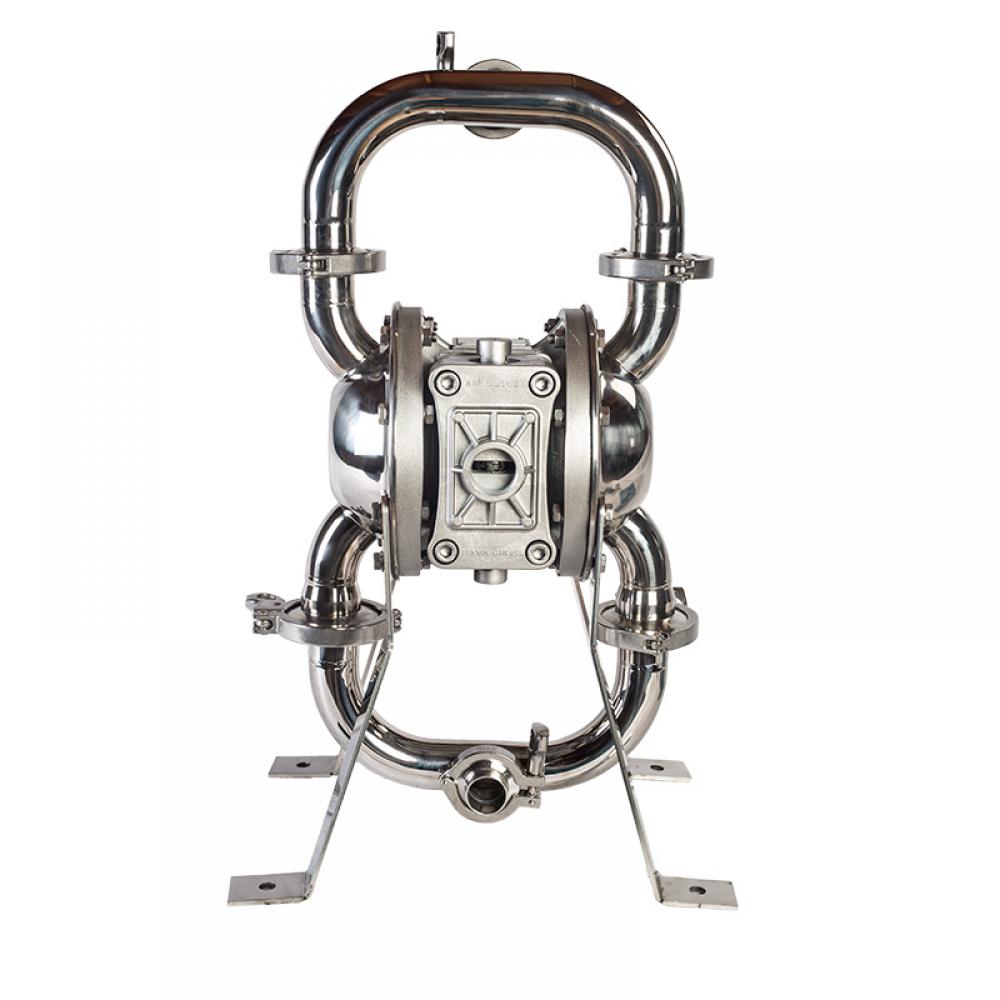

HP10 Hygienic Pumps New Age Technical Data

Max. Capacity                          : 150 lt/min

Intake/Discharge Size              : 1" (inch)

Fluid Discharge Pressure        : 7 bar

Main Body                                 : Stainless Steel

Diaphragms                             : Santoprene, Neoprene, Buna-N, EPDM, PTFE, Viton

Balls                                          : Santoprene, Neoprene, Buna-N, EPDM, PTFE, Viton

Ball Seats                                 : Santoprene, Neoprene, Buna-N, EPDM, Teflon, Viton

Air Inlet Size                             : 3/4" (inch)

Solids - Handling                   : 4mm

Suction Depth                          : 6m

Operating Pressure Max      : 7 bar

AREAS OF USAGE:

1-CHEMICAL INDUSTRY: For transfer acids, alkalis, solvents, alcohols

2-FOOD INDUSTRY: Transferring milk, ayran, cream, mayonnaise, ketchup and similar hygienic fluids

3-COSMETIC AND PHARMACEUTICAL INDUSTRY: For transfer cream, shampoo, gel and other chemicals

ADVANTAGES:

1-Corrosion-resistant

2-Pumps can use for transferring fluids which contains particles

3-Maintenance is easy and costs are low

4-Flow rate can adjust with change inlet air pressure.

5-Pumps can work without fluids.

6-Suction depth is 6 meter.

PERFORMANCE CURVE:

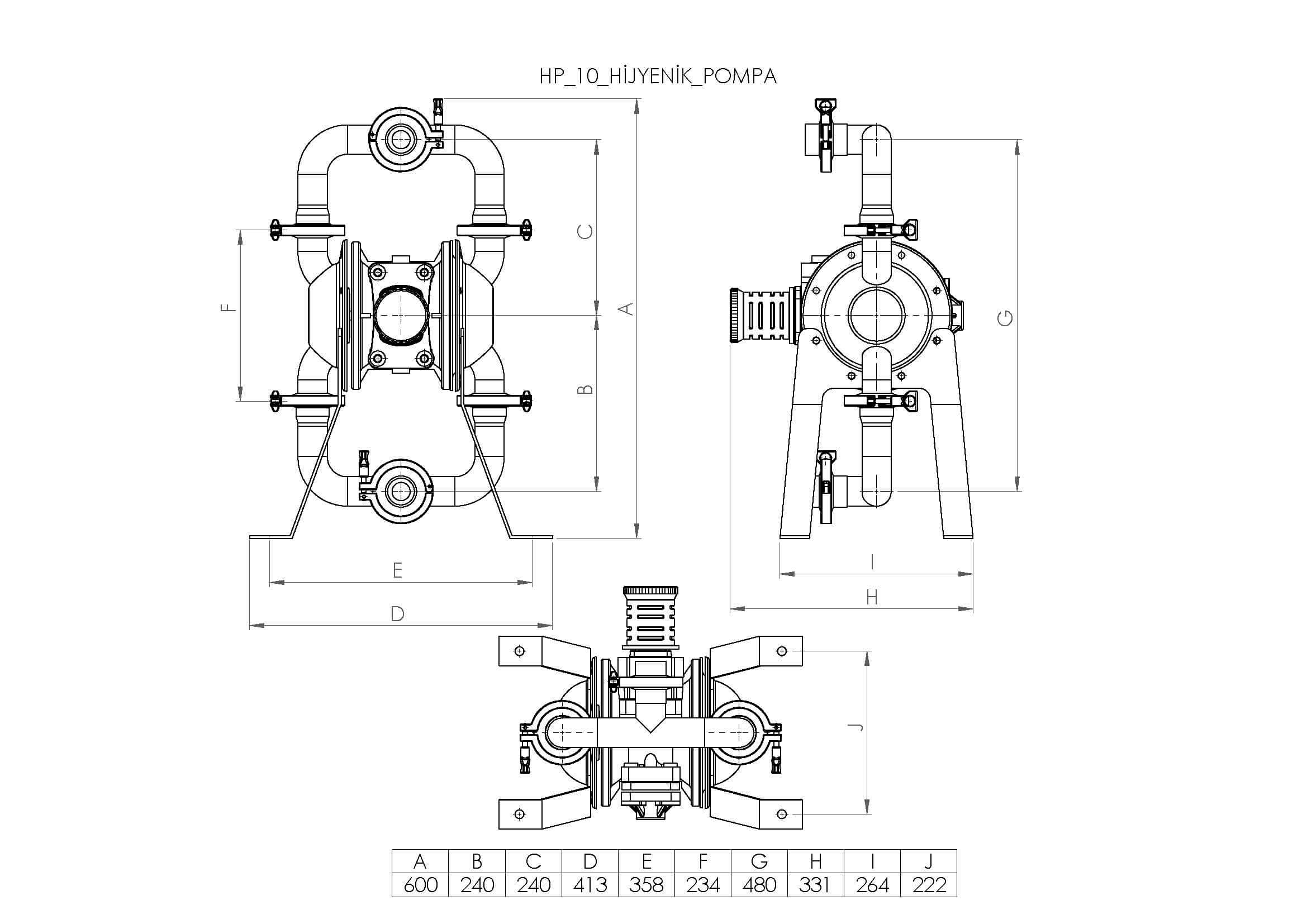

EXTERNAL DIMENSIONS OF THE PUMP:
