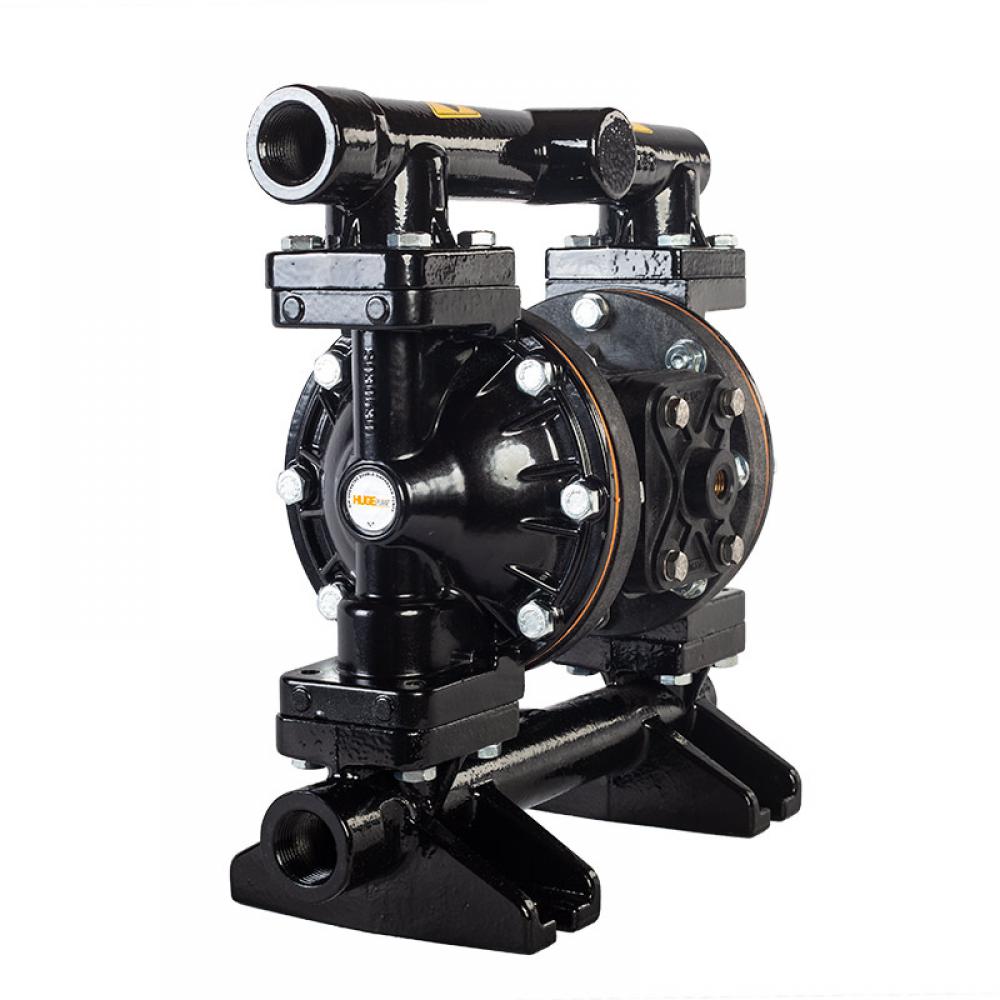

HP05 Y Metalic Body AODD Pumps Technical Data

Max. Capacity                          : 55 lpm

Intake/Discharge Size           : 3/4" (inch)

Fluid Discharge Pressure    : 7 bar

Main Body                                 : Aluminium, Cast Iron, Cast Stainless Steel.

Diaphragms                             : Santoprene, Neoprene, Buna-N, EPDM, PTFE, Viton

Balls                                          : Santoprene, Neoprene, Buna-N, EPDM, PTFE, Viton

Ball Seats                                 : Santoprene, PTFE

Air Inlet Size                             : 1/4" (inch)

Solids - Handling                   : 3mm

Suction Depth                          : 6m

Operating Pressure Max      : 7 bar

AREAS OF USAGE:

1-CHEMICAL INDUSTRY: For transfer acids, alkalis, solvents, alcohols

2-REFINING INDUSTRY: For using as dosage, circulation pump, filter press pump

3-CERAMIC INDUSTRY: Glaze and slurry transfer

4-IN SHIP: Transferring bilge, sludge and chemicals

5-COSMETIC AND PHARMACEUTICAL INDUSTRY: For transfer cream, shampoo, gel and other chemicals

6-PACKAGING INDUSTRY: Transfer and storage of products such as glue, resins, paint, varnish, ink

ADVANTAGES:

1-Corrosion-resistant

2-Pumps can use for transferring fluids which contains particles

3-Maintenance is easy and costs are low

4-Flow rate can adjust with change inlet air pressure.

5-Pumps can work without fluids.

6-Suction depth is 6 meter.

PERFORMANCE CURVE:

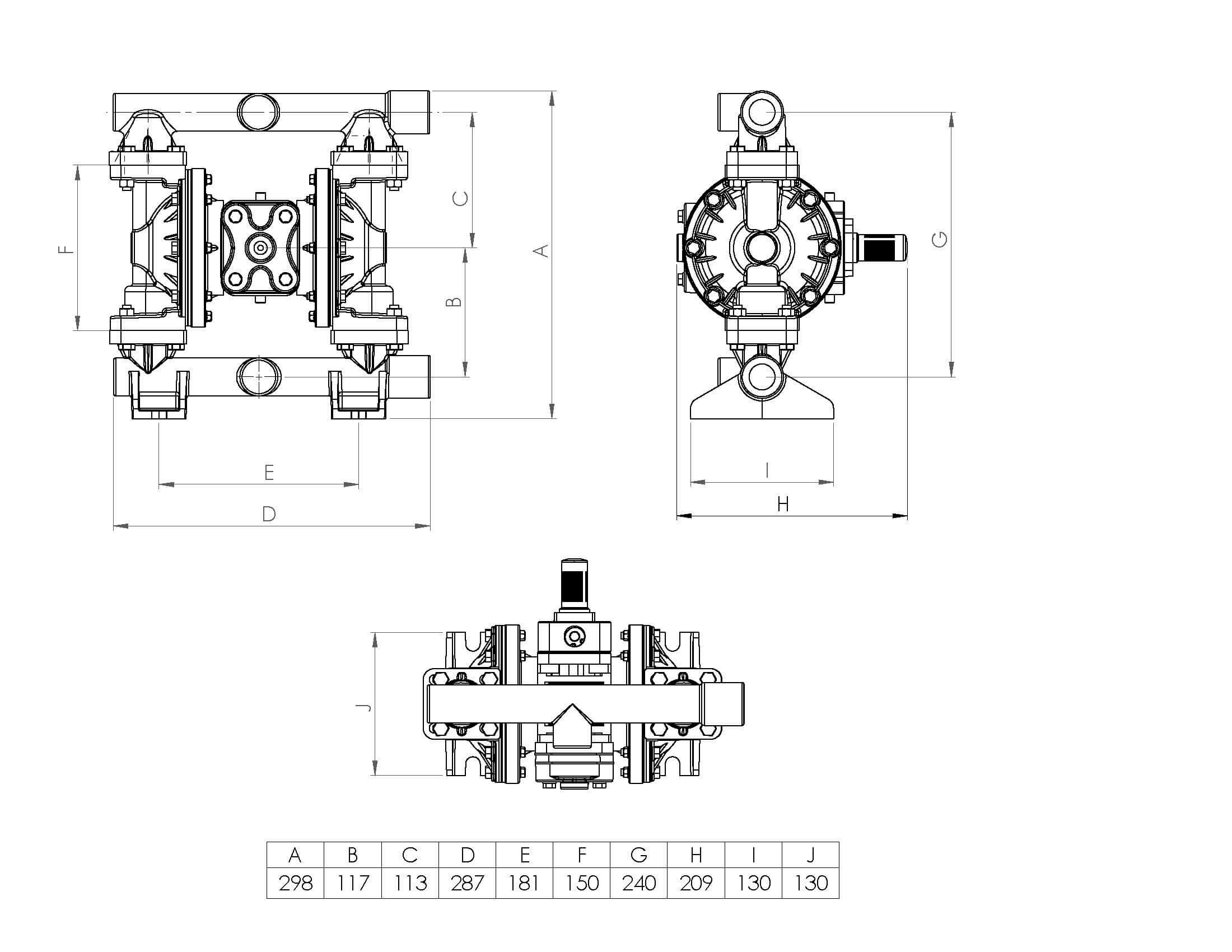

EXTERNAL DIMENSIONS OF THE PUMP:
